6 and 10 bands for UREI 546 parametric equalizer

It is true, I cannot found really correct math expression to modify the band-frequency of UREI 546 EQ circuit, but I think I have a very useful Excel sheet. I think the not 100% exact expression is not a big problem, because the frequency parameter is adjustable. I have a plan UREI 546 with 6 bands, but I counted out values of potentiometers and capacitors for 10 bands. For 10 bands EQ I will design mainboard later.

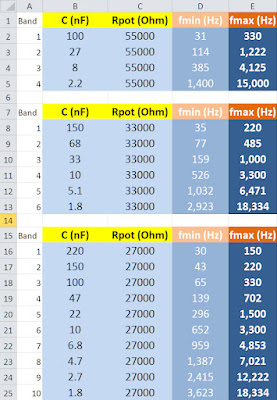

The first table for original 4 bands, 6 bands, and 10 bands:


The result is the value of P1 stereo potentiometers for frequency adjustment, and the capacitor of filter C(a) = C(b). If somebody have better expression please send me a message.

Another table just for variations:
